Reset copy control unit 22A - Standard Normal Cable connection
Price: |
|
---|---|
Freight costs: | From € 5,98 VAT included (22%)Details |
Item code: | NC06 |
Brand: | Capobranco |
Unit of measurement: | PZ |
Availability: | Available (7 PZ)
Delivery 24/48h working (7 PZ) |
Quantity: |
Users feedback

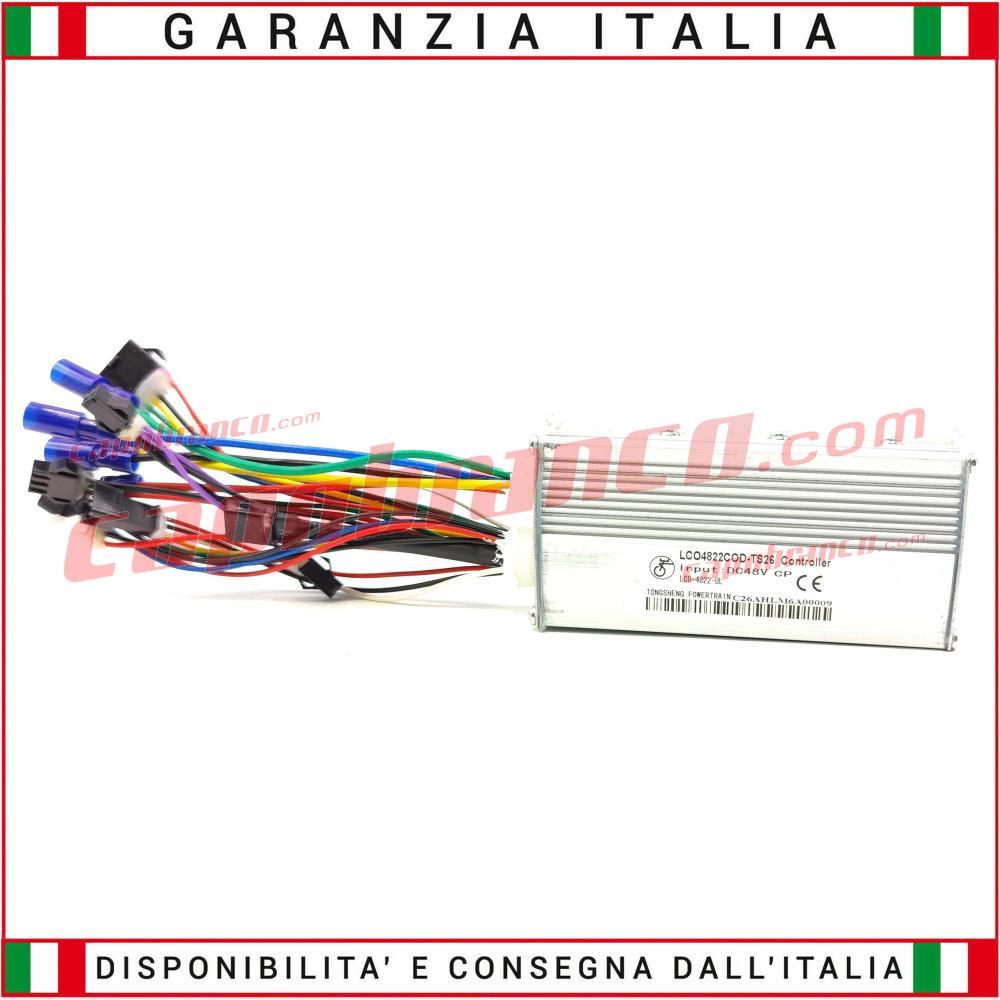

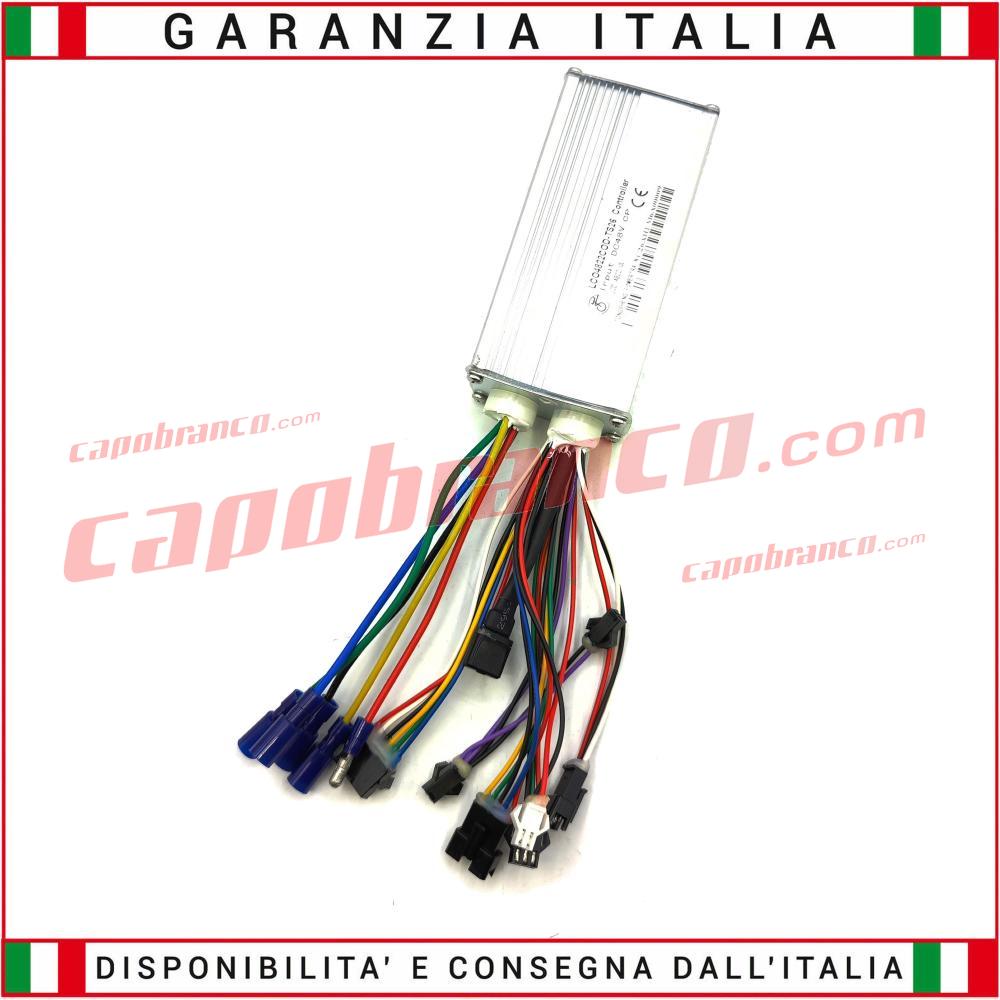

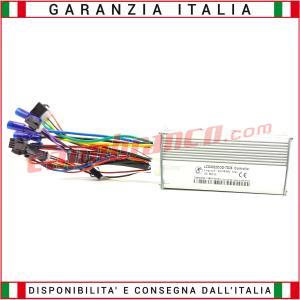

Control unit 48V 22A - 500W - with Hall sensors - normal cable connection
- This control unit must be replaced only and exclusively for the same Reset bike control unit code
- This controller DOES NOT INTERFACE with KT displays and components.
Measures:
LENGTH: 11.2 cm
WIDTH: 5.2 cm
HEIGHT: 3 cm
Technical data:

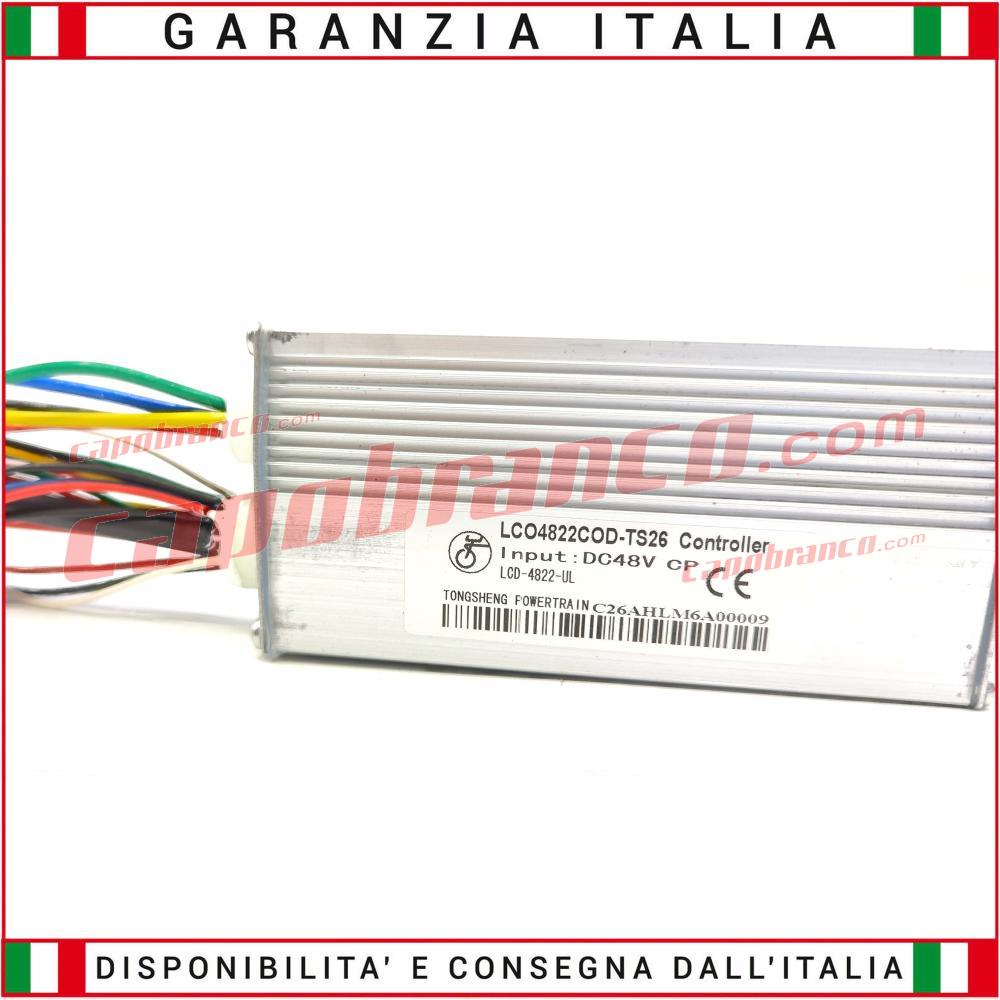

MODEL: LCO4222COD-TS26 CONTROLLER
NOMINAL VOLTAGE: DC48V
NOMINAL CURRENT: 11A
MAXIMUM CURRENT: 22A + - 1A
LOW VOLTAGE PROTECTION: DC40 + - 0.5V
SPEED SET: 1-4.2V
For any technical information on assembly and compatibility, the technicians are available at 3206140014 also with whatsapp message. Capobranco Project is not responsible for tampering or incorrect installations. The control units branded CAPOBRANCO use the best components to provide the best quality and reliability. Our control units, assembled by specialized technicians, are tested at the end of the production process and before shipment. On the control units for electric bikes, scooters and electric scooters, Capobranco Project guarantees a 1 year warranty. Our products are stored and shipped from our headquarters in Italy.
