KT Control unit 48V 22A - 500/650W - with and without hall sensors - UPG

KT Control unit 48V 22A - 500/650W - with and without hall sensors - UPG

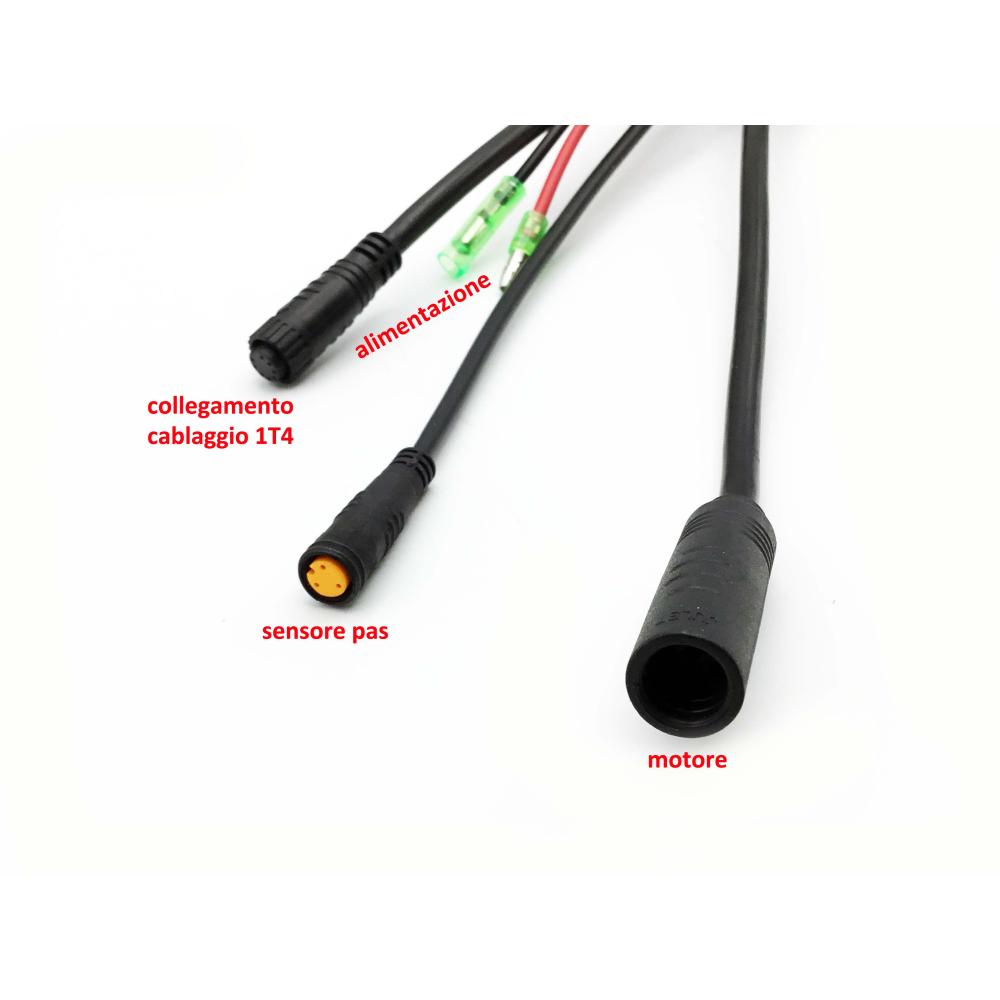

- This universal control unit works at 48v and also has the particularity of being able to operate both with motors with hall sensors (the 5/6 small wires coming out of the engine) that with engines without hall sensors.

- This controller ONLY INTERFACE with KT displays and components.

- This universal control unit works with all brushless motors (without

brushes) but hardly interfaces with standard bike displays.
- Can be mounted on: E-Bike, electric scooters, electric scooters, quads

electric, scooter for the disabled. So on every electric vehicle that has a

brushless motor (you can guess if the motor is brushless from the outflow of three

wires of yellow, green and blue color from the engine).
- We also recommend purchasing our universal display to be sure of the

correct operation of the controller.

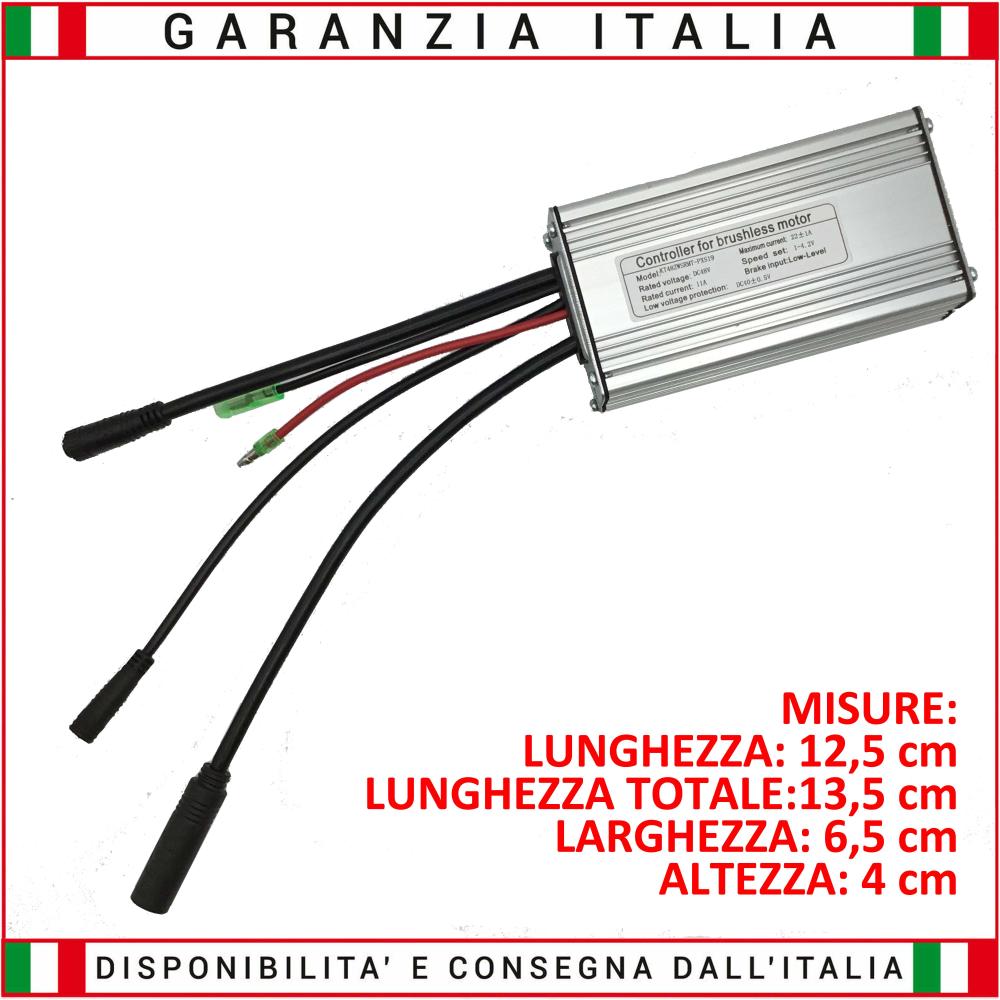

Measurements:
LENGTH: 12.5 cm
TOTAL LENGTH: 13.5 cm
WIDTH: 6.5 cm
HEIGHT: 4 cm

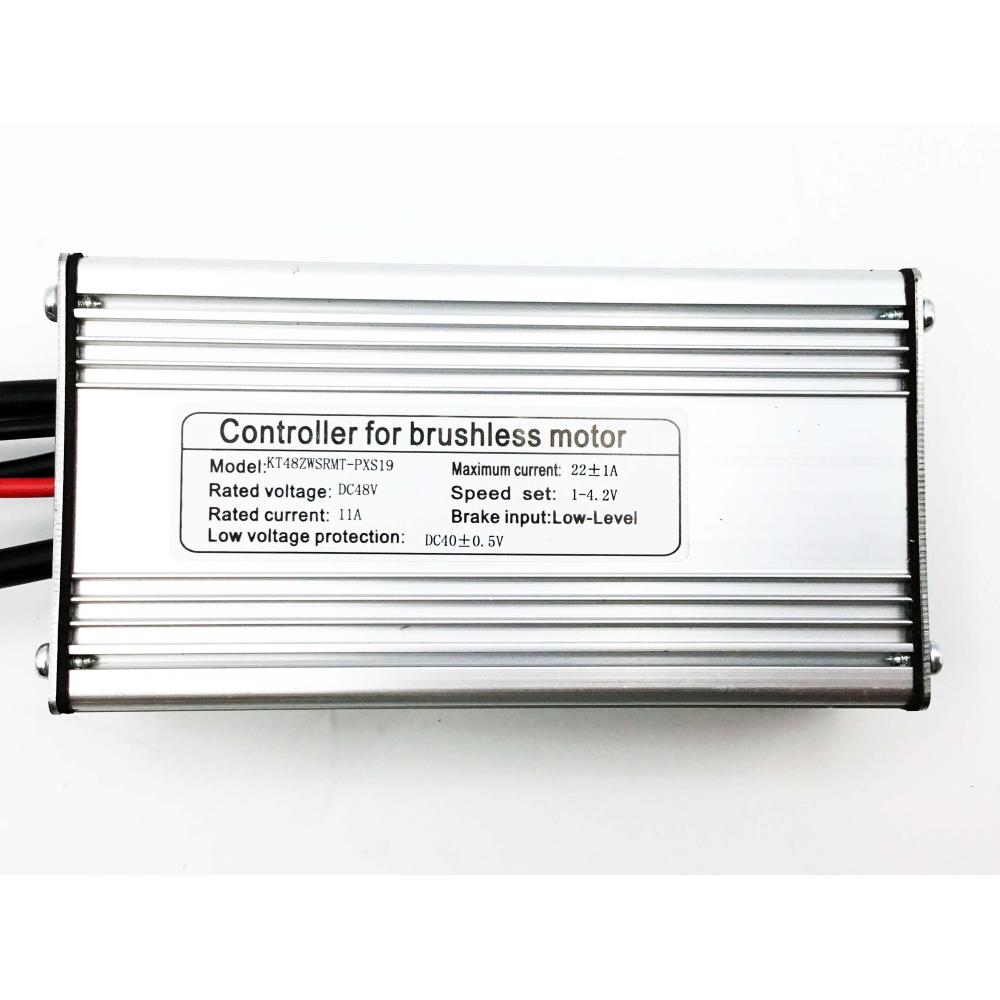

Technical data:
MODEL: KT48ZWSRMT-PXS19
NOMINAL VOLTAGE: DC48V
NOMINAL CURRENT: 11A
MAXIMUM CURRENT: 22A
LOW VOLTAGE PROTECTION: DC40 + - 0.5V
SPEED SET: 1-4.2V
