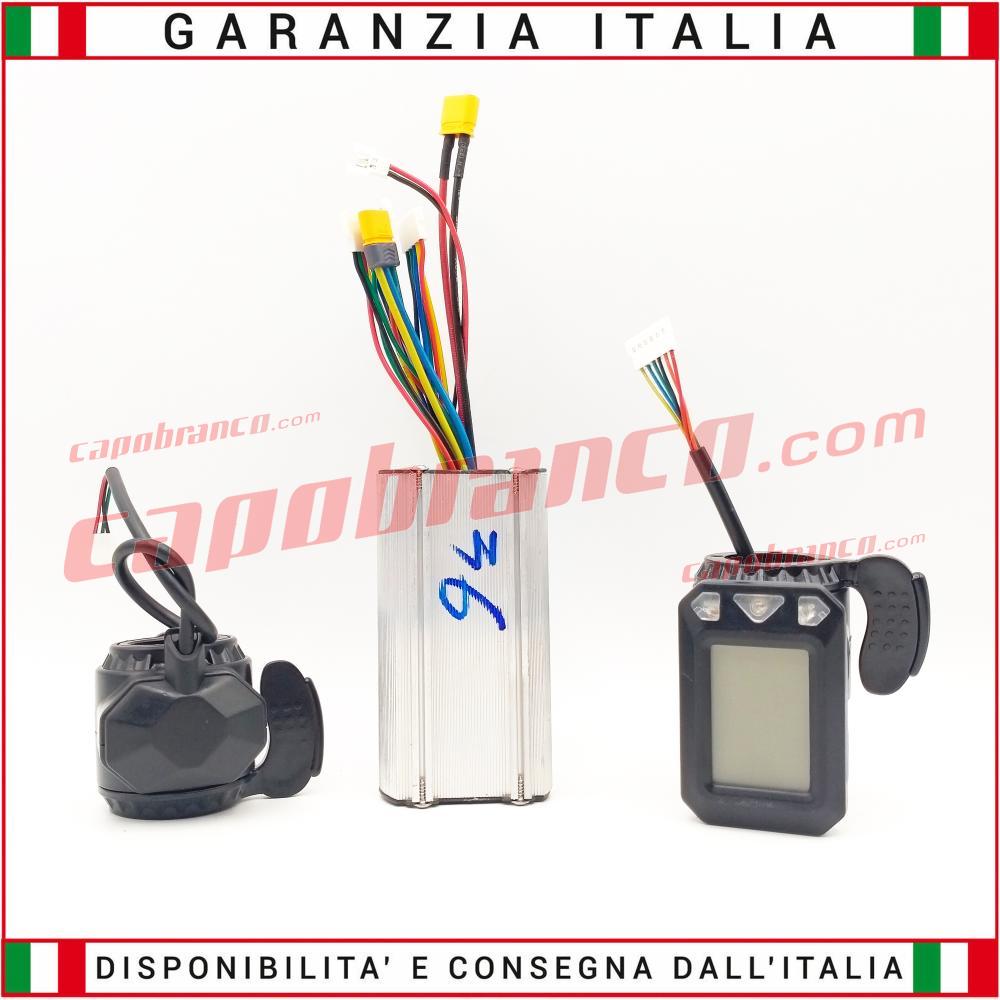

Accelerator + Brake + Controller 36V Display Kit for brushless motors

Accelerator + Brake + Controller 36V Display Kit

This kit can be mounted on scooters with 36 Volt system.

For motors from 250 up to 350 Watt

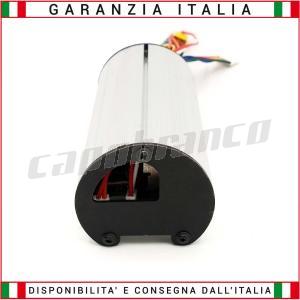

Small and light controller with aluminum case, resistant to shocks and high temperatures. (measurements: 8.5cm x 4.5cm x 3.7cm)

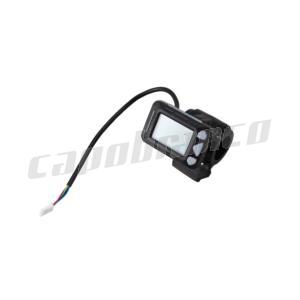

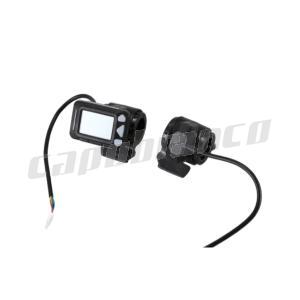

Multifunction LCD display with integrated accelerator.

Electronic lever brake.

It is recommended to mount this kit in scooters that carry the controller and battery inside the steering axis but it can also be mounted on other models as long as they have brushless motors.

NB: This kit can only be assembled complete with all its components and only and exclusively on brushless motors (brushless motors with three large wires plus six small ones at the motor output).

Type: Display
Rated voltage: 36V
Rated power: 250W
Under voltage protection: 21V
Over current: 16A
P00: Backlight brightness, level 1 is the darkest, level 3 is the brightest;
P01: unit of distance in miles, 0: KM; 1: MILE;
P02: Voltage level: 24V, 36V, default 36V;
P03: Sleep time: 0 - no Sleep; Other numbers are sleep time, range: 1-60; Unit: minutes;
P04: Wheel diameter: unit is inches; Accuracy: 0.1;
P05: Number of Network Speeds: Range: 1-100;
P06: Speed ??limit: range of 0-100%, 100 means unlimited speed;
P07: Zero start, non-zero start setting, 0: zero start; 1: non-zero start;
P08: Soft start, hard start setting, 0: hard start, 1: soft start;
P09: Automatic cruise, 0: cancel the cruise function, 1: auto-cruise starts after 7 seconds of throttle;
P10: Password is used, 0: no password is required, 1: password is required;
P11: Password: 00-99;
P12: ODO clear setting Press the button for 5 seconds to clear the
Material: plastic
Size: Diameter: 46.6mm
Length: 88mm

For any technical information on assembly and compatibility, the technicians are available to the number 3206140014 also with whatsapp message. The control units branded CAPOBRANCO use the best components to provide the best quality and reliability Our control units, assembled by specialized technicians, are tested at the end of the process production and before shipment. On the control units for electric bikes, scooters and electric scooters, the Capobranco Project guarantees 1 year warranty Our products are stocked and shipped from our headquarters in Italy.
