48V 1000 / 1600W control unit for brushed motors (BRUSHED)

Enhanced control unit for electric scooters from 1000 to 1600 Watt

- Applies to: Brushed Motor (with brushes)
- Complete with wiring
- Electric current 26A
- Turbo mode and lights

It can be mounted on electric scooters, scooters and electric bikes.

This control unit mounted on an electric bike can only work with the accelerator as the latter does not have assisted pedaling.

Measures:
LENGTH: 9.5 cm (WITHOUT ATTACHMENTS)
WIDTH: 6.7 cm
HEIGHT: 3.3 cm

This control unit is equipped with a speed limiter which is made up of two blue and black wires connected to each other. By detaching the limiter the scooter reaches its maximum speed (1600W), by connecting them the scooter is limited (1000W).

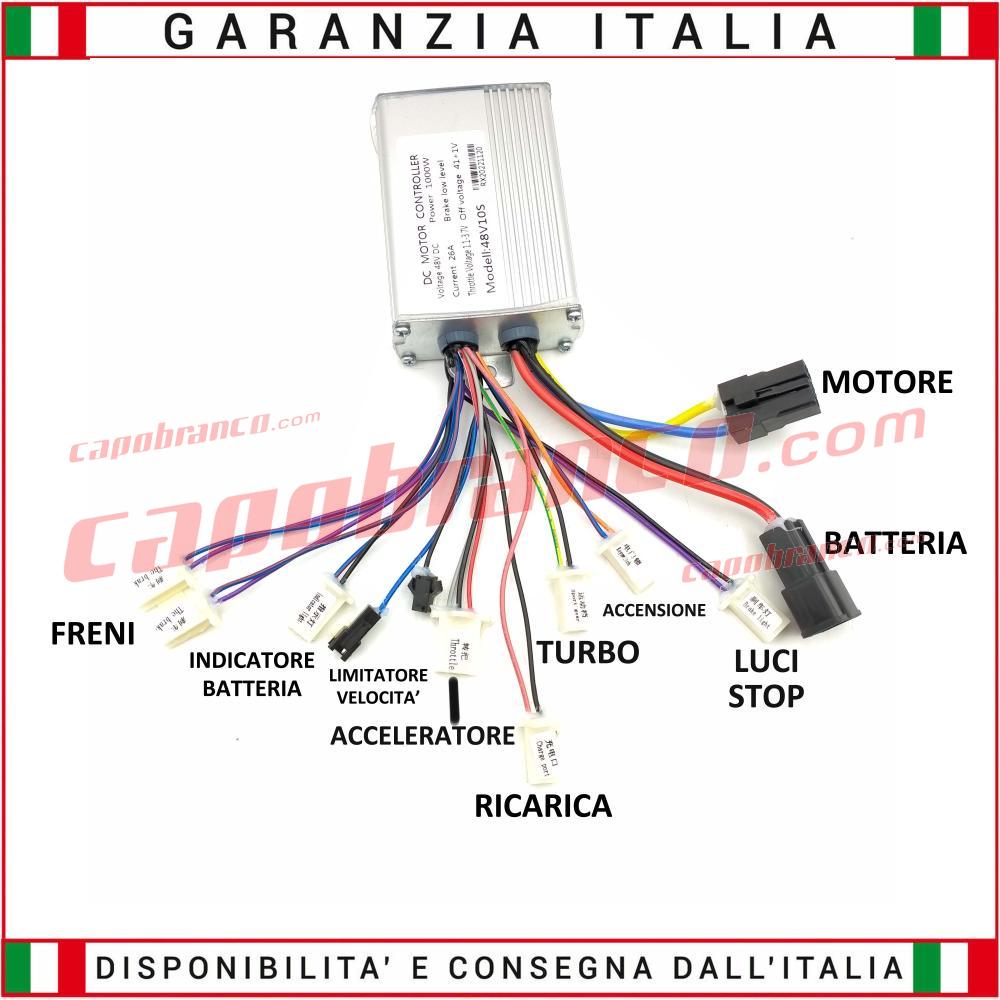

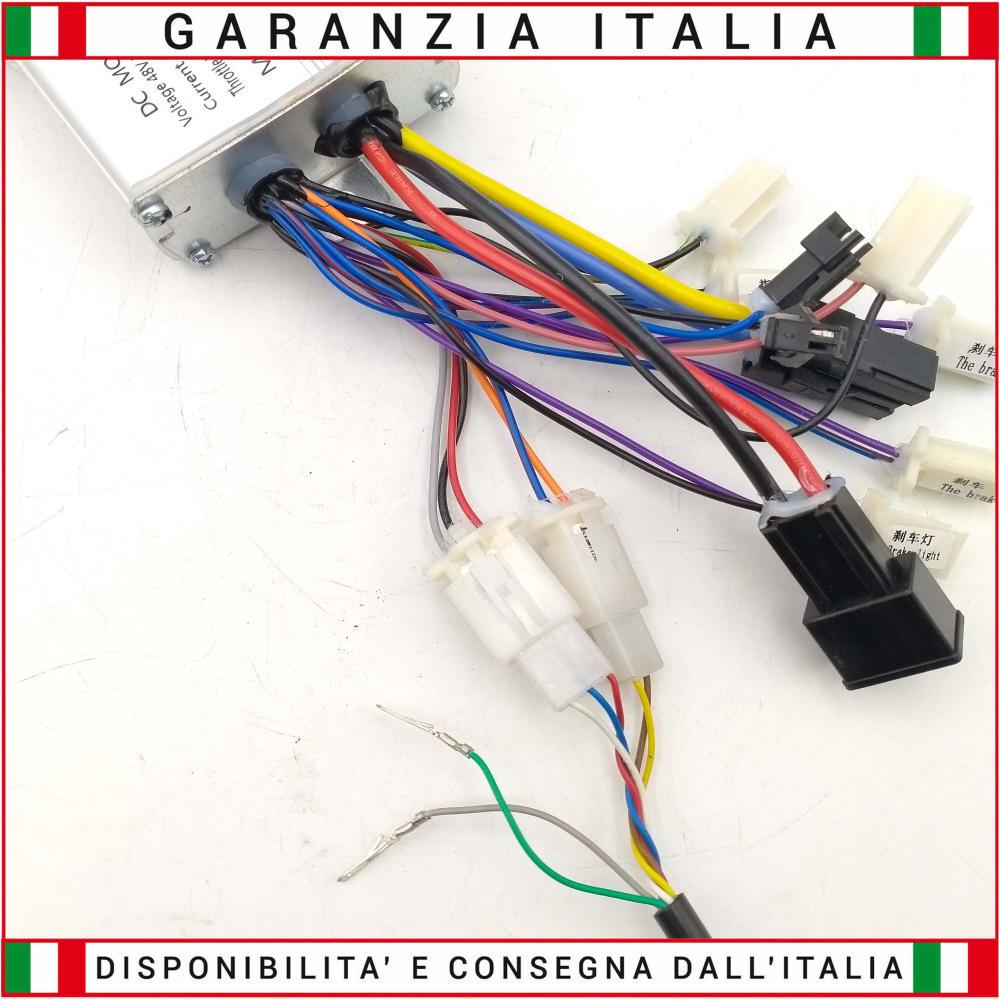

In the photos the connection with accelerator

For any technical information on assembly and compatibility, the technicians are available to the number 3206140014 also with whatsapp message. Capobranco Project is not responsible for tampering or incorrect installations. The control units branded CAPOBRANCO use the best components to provide the best quality and reliability Our control units, assembled by specialized technicians, are tested at the end of the process production and before shipment. On the control units for scooters and electric scooters, Capobranco Project guarantees a 6-month warranty Our products are stocked and shipped from our headquarters in Italy.
